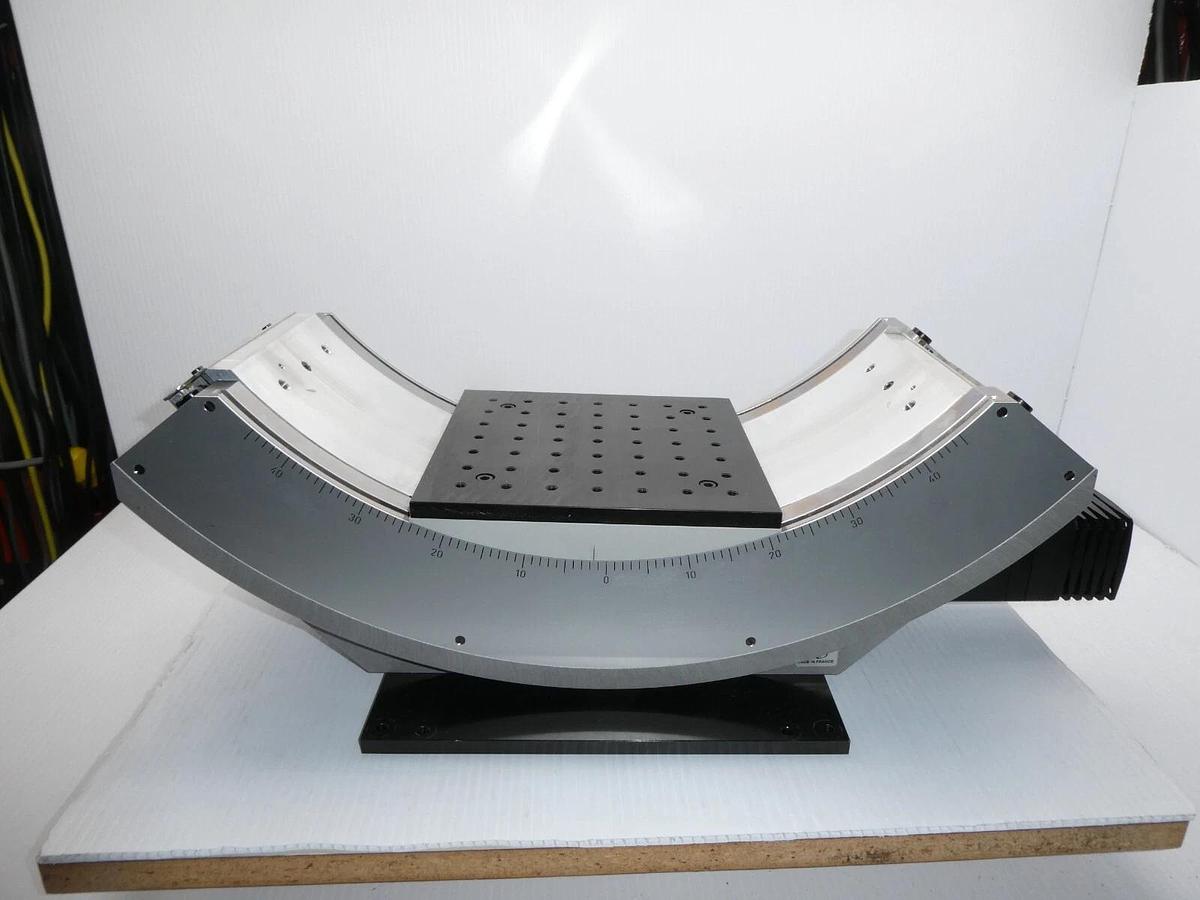

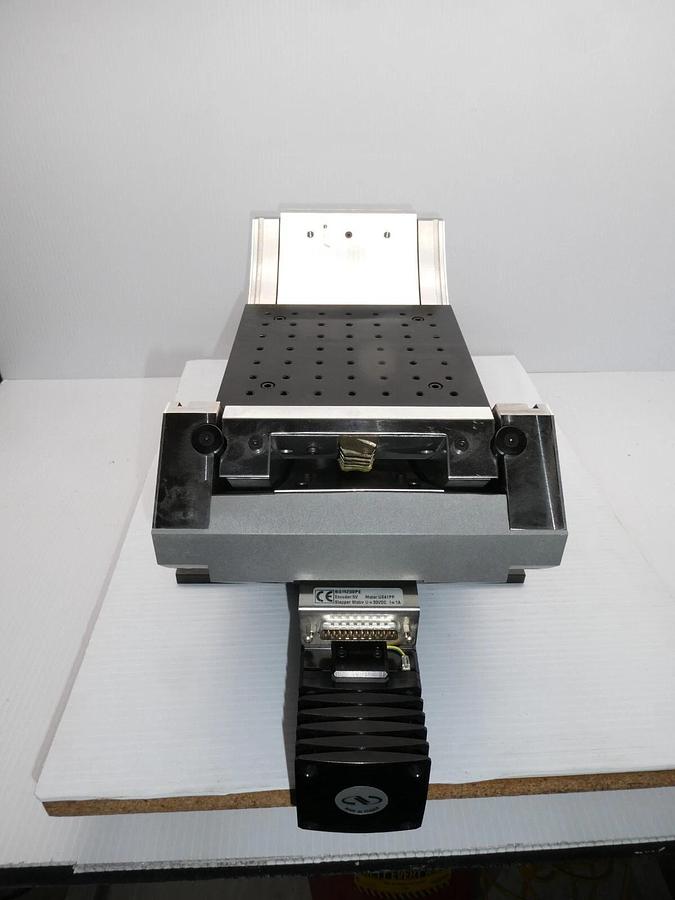

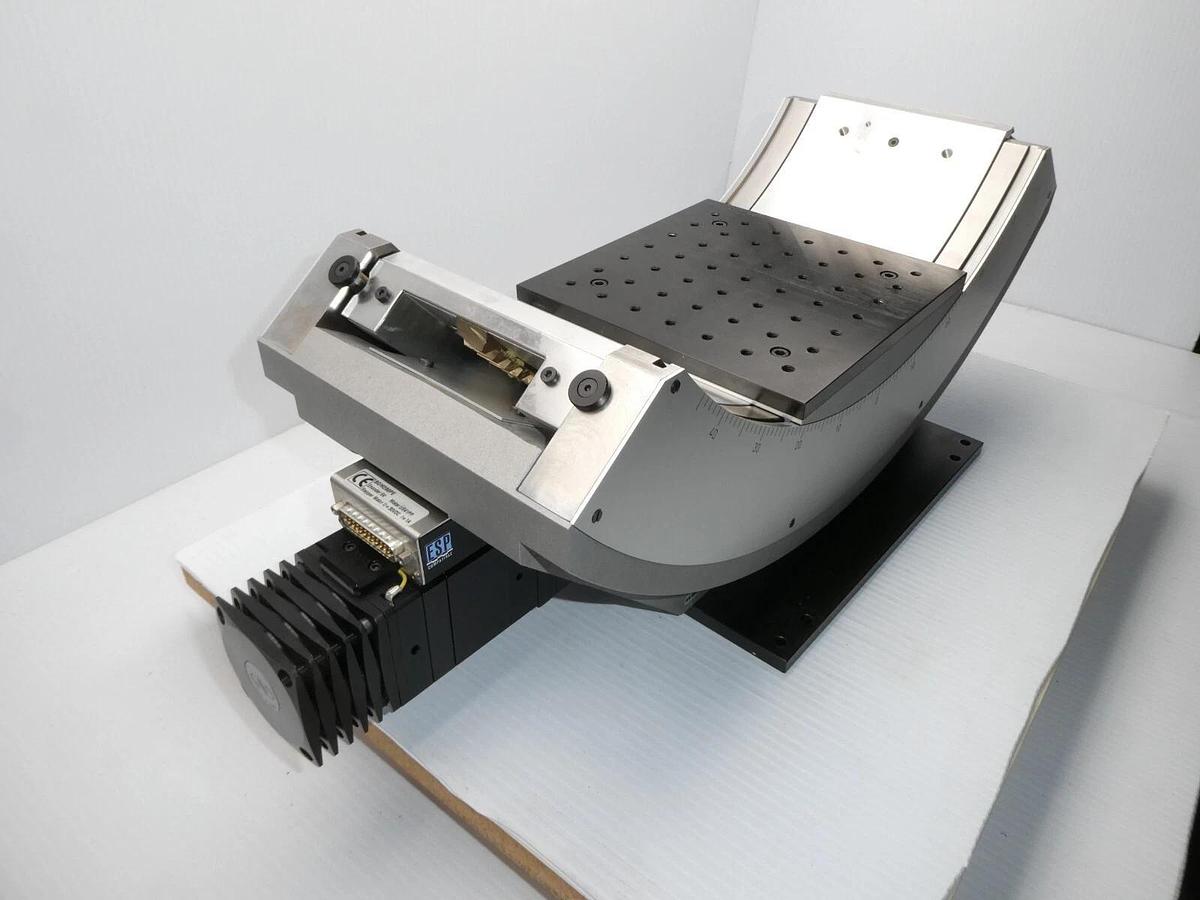

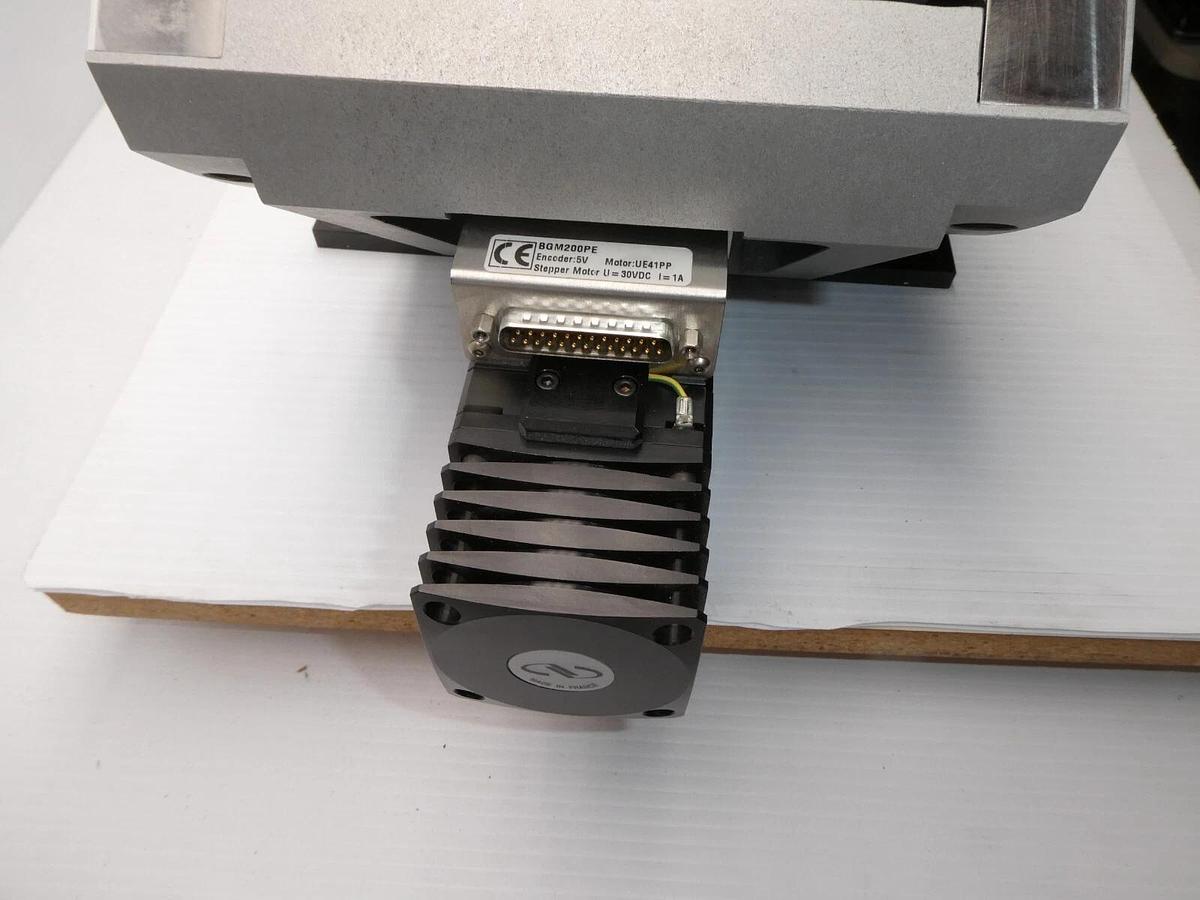

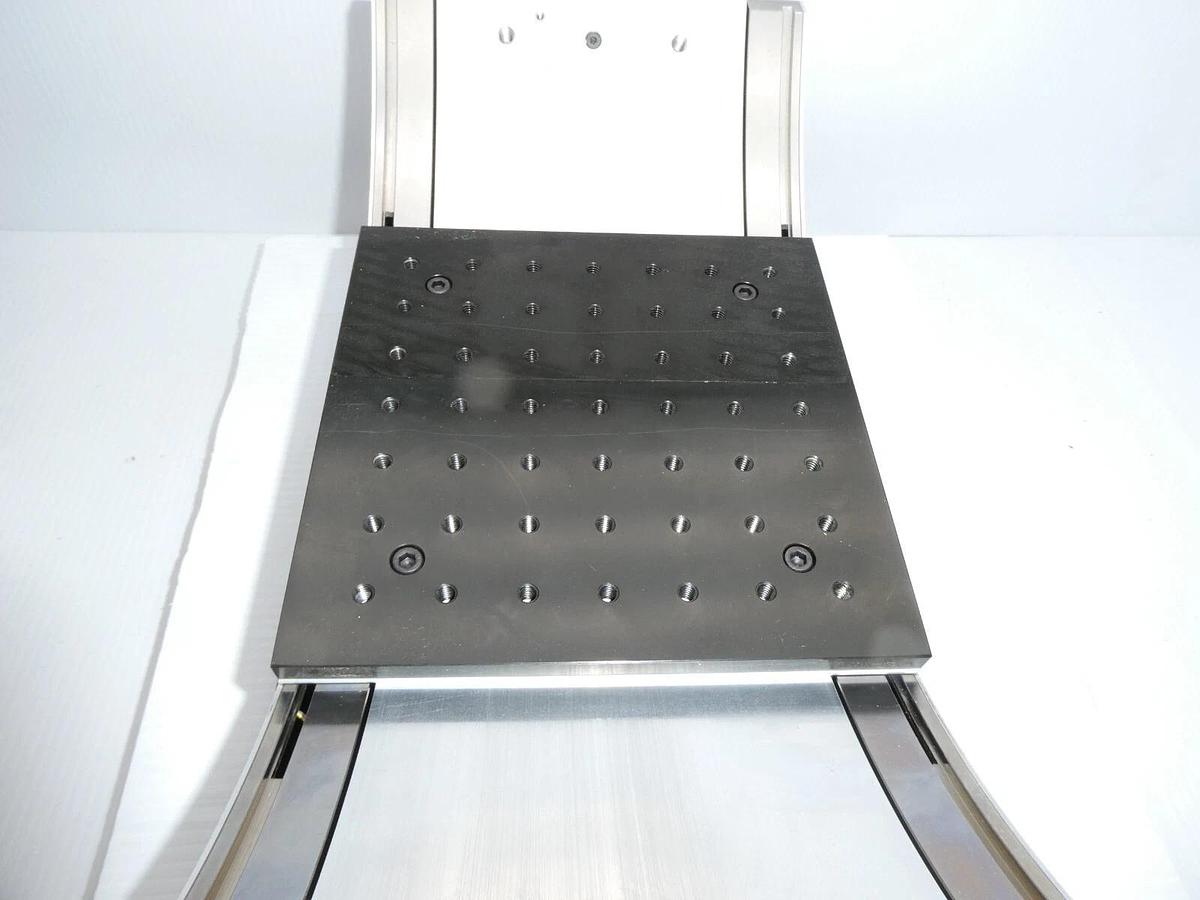

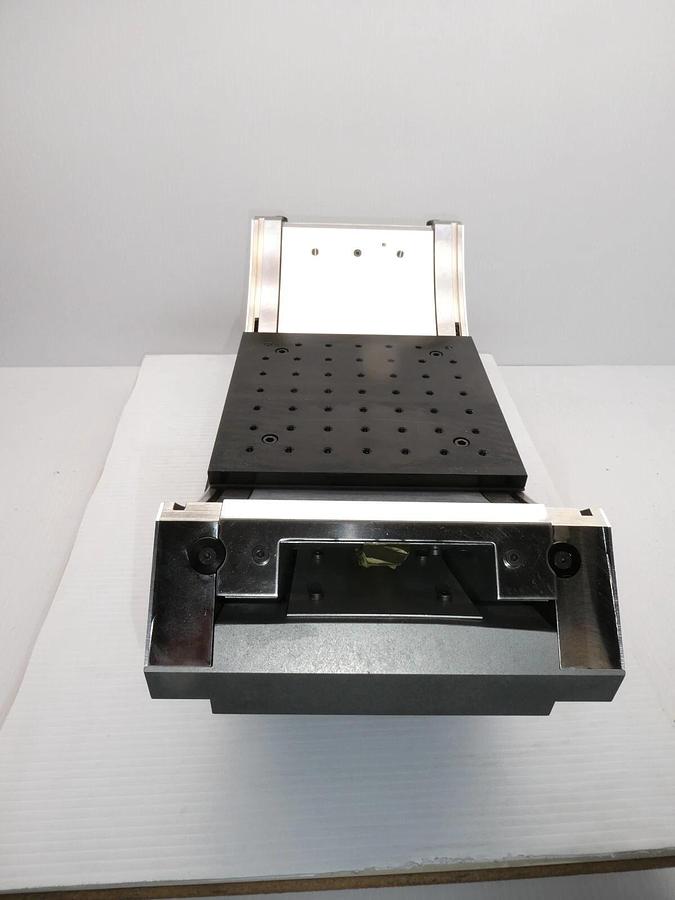

Newport BGM200PE Goniometer, ±45 ° Travel Range, Micro-step drive

Newport BGM200PE Goniometer, ±45 ° Travel Range, Micro-step drive

2503-075/Rack 3A

• Angular Range
• -45 to +45°
• Travel Range
• 200 mm
• Centered Load Capacity
• 500 N
• Load Capacity
• 500 N
• Minimum Incremental Motion
• 2.0 mdeg
•

• Maximum Speed
• 20°/s
• Maximum Torque
• 17 Nm
• Wobble, Typical
• ±100 µrad
• Accuracy, Typical
• ±25 mdeg
• Uni-directional Repeatability (Typical)
• ±2.0 mdeg
•

• Bi-directional Repeatability (Typical)
• ±12 mdeg
•

• Transversal Compliance

2 µrad/Nm

Used / Untested / Removed from reported working equipment / 30 Day Warranty
