PI Instrumente P-561.3 CD

No longer available
PI Instrumente P-561.3 CD
$4,999 (USD)
Location:Burnsville, MN
Description

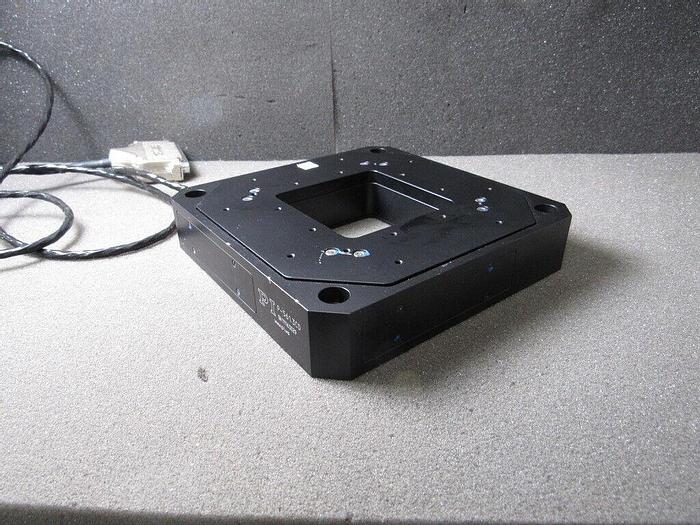

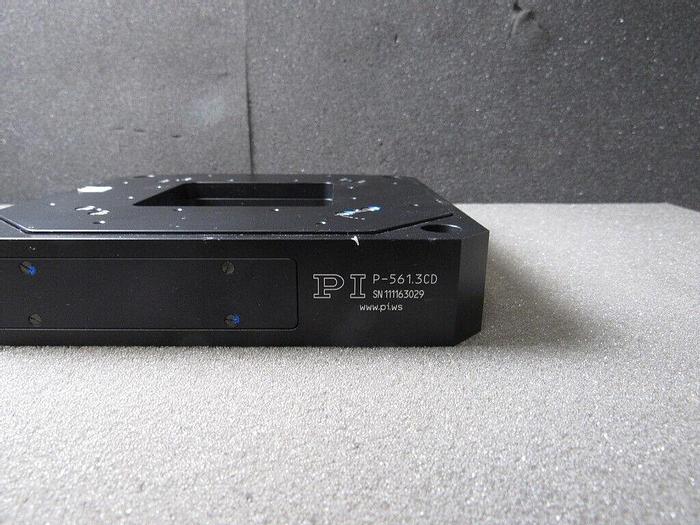

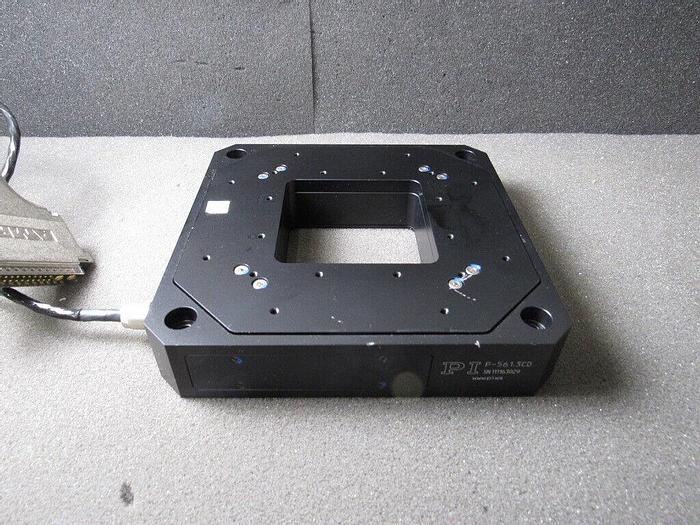

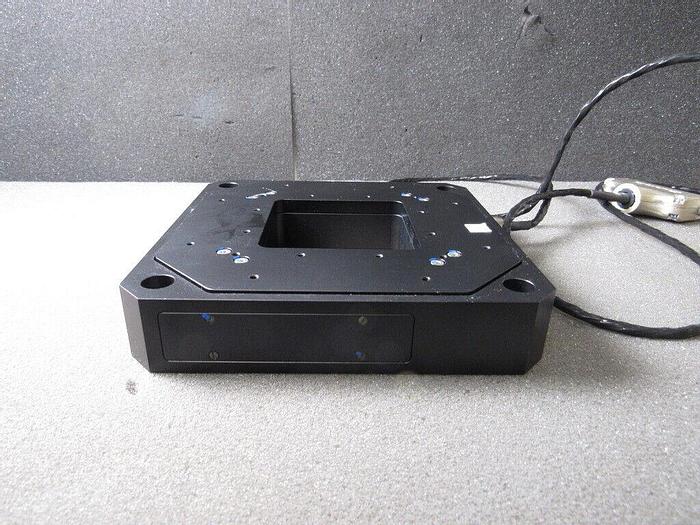

PI Instrumente P-561.3CD mars nanopositioning stage
2111-325/7904D-3
Active Axes
XYZ
Open Loop Resolution
0.2 nm
Max. Normal Load
50 N
Travel Range
300 x 300 x 300 µm
Closed Loop Linearity
0.03 %
Body Material
Al
Closed Loop Travel Range
100 µm
Integrated Feedback Sensor
Capacitive
Closed Loop Resolution
0.80 nm
Push Force Capacity (X)
200 N
Push Force Capacity (Y)
200 N
Push Force Capacity (Z)
50 N
Pull Force Capacity (X)
30 N
Pull Force Capacity (Y)
30 N
Pull Force Capacity (Z)
30 N
Electrical Capacitance (X)
5.2 µF ±20%
Electrical Capacitance (Y)
5.2 µF ±20%
Electrical Capacitance (Z)
10.4 µF ±20%
Dynamic Operating Current Coefficient X (DOCC)
5.2 µA/(Hz x µm)
Dynamic Operating Current Coefficient Y (DOCC)
5.2 µA/(Hz x µm)
Dynamic Operating Current Coefficient Z (DOCC)
10.4 µA/(Hz x µm)
Unloaded Resonant Frequency
190 kHz
Unloaded Resonant Frequency (X)
190 Hz
Unloaded Resonant Frequency (Y)
190 Hz ±20%
Unloaded Resonant Frequency (Z)
380 Hz ±20%
Specifications
Manufacturer | PI Instrumente |
Model | P-561.3 CD |
Condition | Used |
Seller notes | “Unit removed in working condition. Minor scratches from normal use. See pictures for accurate cosmetic condition.” |
Mpn | P-561.3CD |
Stroke length | 300mm (12 in) |
