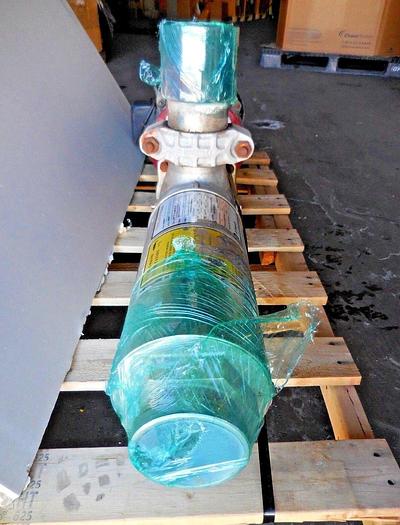

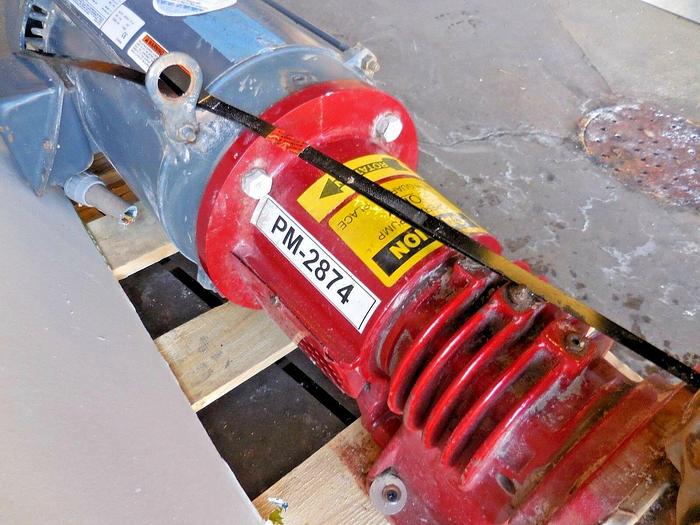

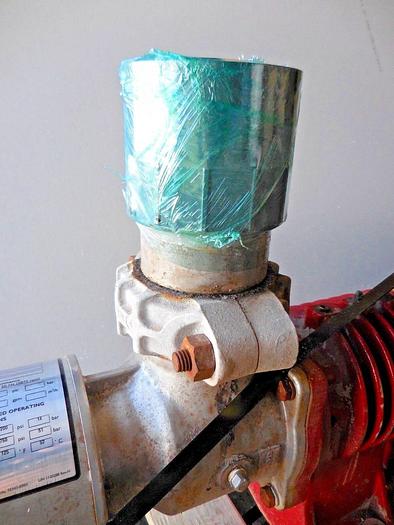

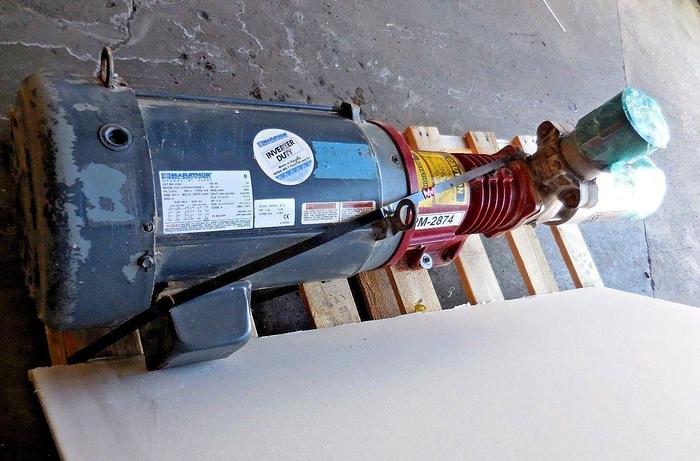

Tonkaflo/ GE Osmonics SS12503D, 1121046 Nominal Pump & Con't Duty Motor #2


Tonkaflo/ GE Osmonics SS12503D, 1121046 Nominal Pump & Con't Duty Motor #2

$1,800 (USD)

Burnsville, MN


Tonkaflo Nominal Pump & Con't Duty Motor (#2) Pump #2 Includes Coupler Attachment Model # SS12503D, Part # 1121046 Mech Seal: STD. 5/8"-21-BF50-1C1-305 60Hz, 3450 RPM, GE Osmonics, SS Family Boost: 69 PSI, 4.8 bar/ Flow: 140 gpm, 31.8 m3/h Max Inlet Pressure: 200 PSI, 14 bar Max Discharge Pressure: 750 PSI, 51 bar Max Liquid Temperature: 125˚F, 52˚C Inlet/Discharge Housing, Shell, Shaft- 316SS Noryl Stage, O-Ring/ Shaft Bearings, Shell Seal- Buna-N Note: GE Repair- 4786424, 30-Day Warranty Marathon Electric Continuous Duty Motor Model # FVA-215TTFW7302AB-L Frame: 215TC, 3-PH, Type: TFR, 40˚C, F3 60Hz, 10 HP, 3465 RPM, 208-230/460V, 1.15 SF, 27-24/12 FLA, 31-27.6/13.8 SFA This is a freight item, we can get a quote and invoice the buyer the freight amount or the buyer can arrange and pay their own freight shipping. Please send us a message if you have any questions. Total Weight: 300 LBS Dimensions: 61 x 42 x 15 Condition: Used Item: 1907-002 Location: Rack22-TOP **Shipping**


Seller notes“Pump #2 Includes Coupler Attachment”
Country/region of manufactureUnited States
Flow rate40-190 gpm
Power sourceElectric
Bundle listingYes
Number of phases3 Phase
Supply voltage208-230/460 V
Centrifugal pump typeStraight
Pump housing materialStainless Steel
Rated power10 hp
Maximum rpm3450
Inlet diameter3 in Victaulic
