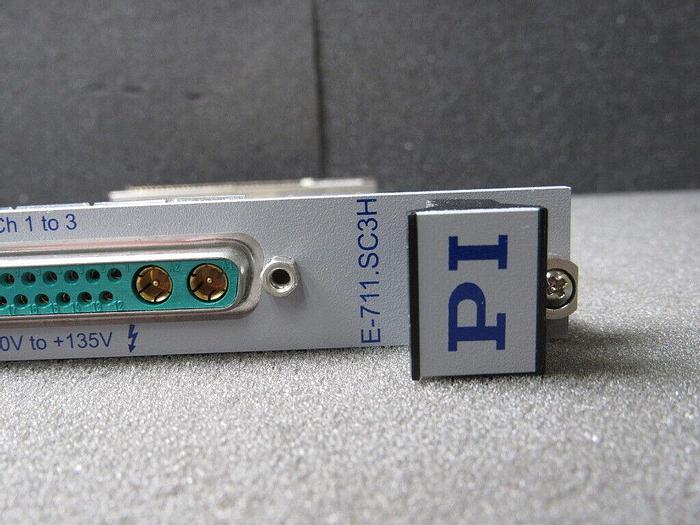

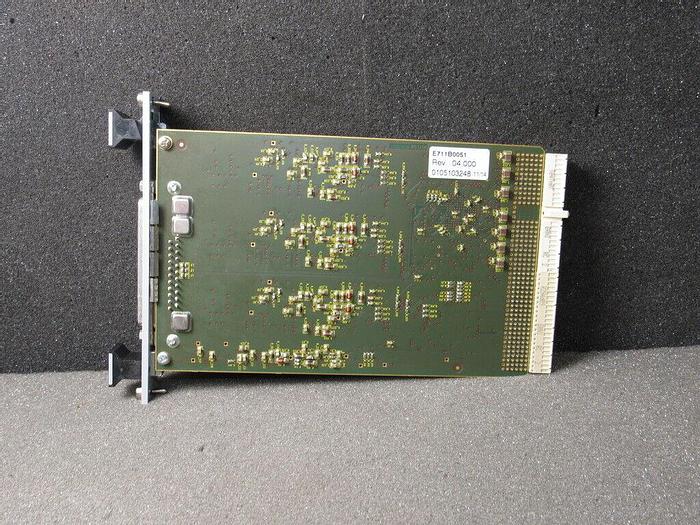

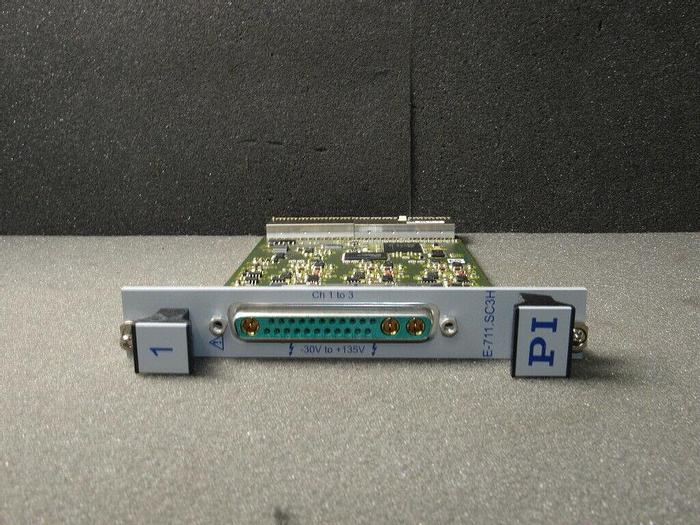

Physik Instrumente E-711

Physik Instrumente E-711

$1,499 (USD)

Location:Burnsville, MN

orCall 612-332-2369

Description

Physik Instrumente E-711.SC3H Digital Piezo Controller 2111-326/7904D-3 Function Modular digital controller for multi-axis piezo nanopositioning systems with capacitive sensors Axes 3 Processor PC-based, 600 MHz, real-time operating system Servo Control Sampling Rate 50 kHz Sensor Sampling Rate 50 kHz Controller Type P-I, two notch filters Sensor Type Capacitive Sensor Channels 3 Sensor Bandwidth (-3 dB) 10 kHz Sensor Resolution 18 (interpolated: 20) bits External Synchronization Yes Output Voltage -30 to 135 V Amplifier Channels 4 Peak Output Power / Channel 25 W Average Output Power / Channel 8 W Current Limitation Short-Circuit Proof Resolution DAC 20-bit Temperature Sensor Yes Communication Interfaces RS-232 SPI TCP/IP USB Piezo / Sensor Connector Sub-D Mix 25W3 Digital Inputs/Outputs MDR20: 8 × TTL Command Set PI General Command Set (GCS) **Shipping** All Customers: We can use your FedEx or UPS account to ship via the method and speed you request.

Specifications

ManufacturerPhysik Instrumente
ModelE-711
ConditionUsed
Seller notes“Controller removed in working condition”

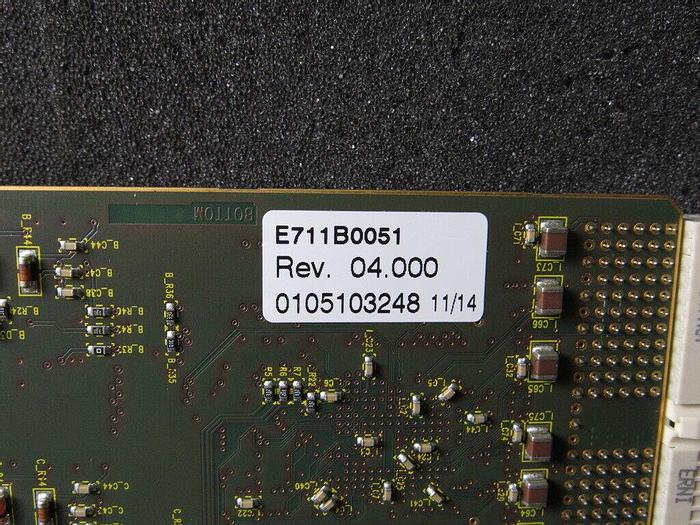

MpnE-711.SC3H
